Bose L1 PRO Series Sub2 Portable Bass Module
Bose L1 PRO Series Sub2 Portable Bass Module - Image 2
Bose L1 PRO Series Sub2 Portable Bass Module - Image 3
Bose L1 PRO Series Sub2 Portable Bass Module - Image 4
Bose L1 PRO Series Sub2 Portable Bass Module - Image 5
Bose L1 PRO Series Sub2 Portable Bass Module - Image 6
Bose L1 PRO Series Sub2 Portable Bass Module - Image 7

Bose L1 PRO Series Sub2 Portable Bass Module

$1,499.00

Key Features

  • 18×10″ RaceTrack Designed Driver
  • Equivalent to Conventional 18″ Woofer
  • Plays Low to 37 Hz
  • Lightweight & Easy Setup

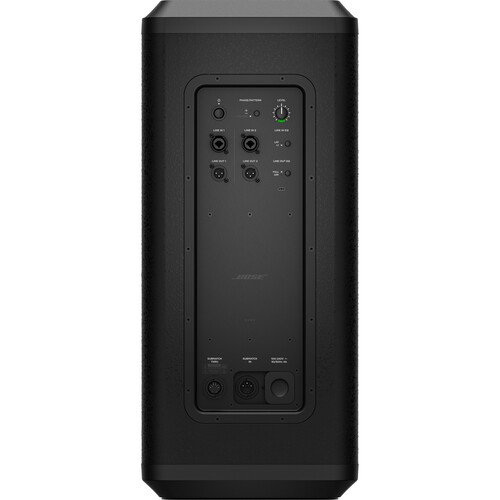

  • Two Combo XLR-1/4″ Inputs + XLR Outputs
  • Phase/Pattern Control
  • Cardioid Mode with Two Sub2 Modules
  • SubMatch Input and Thru
  • Includes Slip Cover and Power Cord



Category:

Description

The L1 PRO Series Sub2 Portable Bass Module is a high-output active subwoofer well suited for mobile entertainment, AV rental, event production, clubs, and performance venues. The 18×10″ RaceTrack direct radiating driver is powered by a 1000W Class-D amplifier, which delivers high sound pressure levels with dynamic and musical sound reproduction of very-low frequencies.

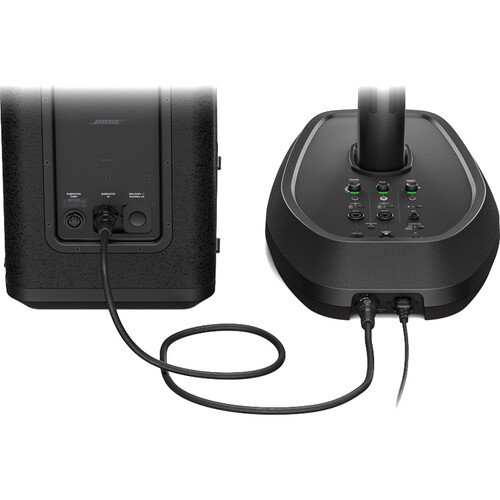

The Sub2 connects to the L1 PRO32 line array via SubMatch cable and works seamlessly with the L1 Mix app. The subwoofer can also be paired with a Bose S1 Pro system to create a micro-PA. An M20 threaded input on the side of the sub allows you to deploy a speaker pole for any speaker up to 34 lb. Two subs can be used together for a cardioid mode, which lowers the stage volume and decreases feedback issues. The Sub2 ships with a slip cover and a power cord.

Bass without the Bulk
The Sub2 is a powered, portable bass module that combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Sub2 is the most powerful subwoofer option for the Bose L1 PRO32, combining seamlessly via single-cable SubMatch connectivity.

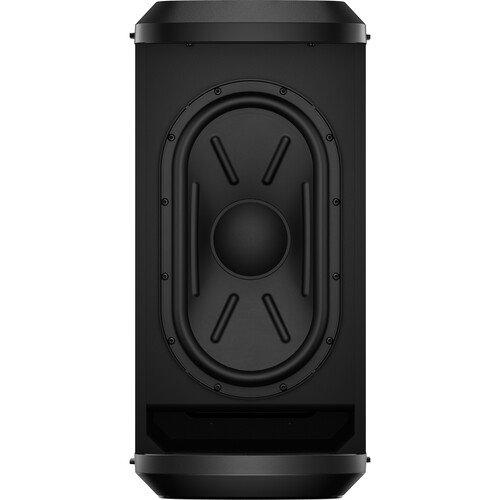

RaceTrack Design
The unique RaceTrack woofer integrated into the Bose Sub2 modular subwoofer delivers powerful bass, has an optimized center of gravity, and save a lot of space. This slim design means you get the full impact of a conventional subwoofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between home to car, vehicle to venue much easier.

Bose SUB2 Specs

Key Specs
Frequency Range/Response
29 Hz to 260 Hz (-10 dB)
37 Hz to 180 Hz (-3 dB)
Enclosure Type
Bass-Reflex
Total Output Power
1000 W
Amplifier Class
Class-D
Drivers
LF Driver
1x 18″ / 45.7 cm Oval Woofer
Voice Coil: 3″ / 76.2 mm
Performance
Frequency Range/Response
29 Hz to 260 Hz (-10 dB)
37 Hz to 180 Hz (-3 dB)
Maximum SPL
123.8 dB (Continuous)
129.8 dB (Peak)
Protections
Dynamic Clip, Signal Limiter
Signal Processing
Crossover Frequency
200 Hz
EQ & Filters
No
Alignment Delay
No
Digital Signal Processing
No
Connectivity
Audio I/O
2x Combo XLR-1/4″ TRS Hi-Z/Line/Mic Input
Network I/O
No
USB I/O
No
Wireless
No
Mobile App Compatible
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Physical
Color
Black
Handles
1x Top
Environmental Resistance
No
Dimensions
27.3 x 21.7 x 12.5″ / 69.3 x 55.1 x 31.8 cm
Weight
50.7 lb / 23 kg
Packaging Info
Package Weight
61.7 lb
Box Dimensions (LxWxH)
31 x 25.5 x 15.25″
